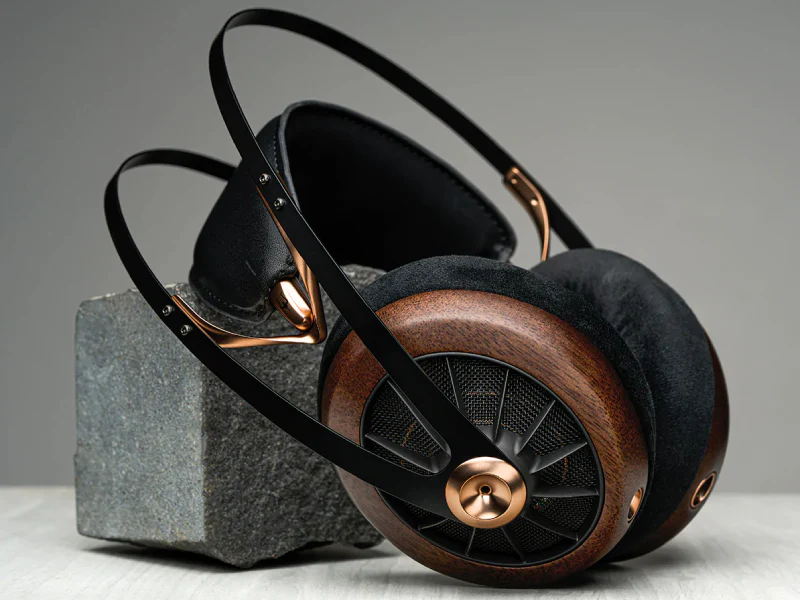

Meze present their first dynamic open-back circumaural headphone the Meze 109 Pro featuring newly designed driver and a hugely comfortable lightweight assembly.

Acoustic Design

Through its open-back design, we wanted the 109 PRO to be vivid and exciting, empowering the listener to connect with music on a deeper level.

Carefully tuned by our in-house engineering team, it offers emotionally engaging sound with great detail, clarity and just the right amount of punch. Its organic character, paired with superior dynamics, excellent imaging, and full-bodied vocals bring soul-stirring details to life. Besides, it’s easy to drive from most devices, whether we’re talking portable sources or intricate home setups.

Diaphragm Design

The diaphragm is the heart of the headphone, producing the waves our brains ultimately perceive as sound. In order to meet the acoustic goals we set for the 109 PRO, we focused our R&D efforts on materials research, looking for the perfect balance between mass and stiffness that would maximize the sonic abilities of the headphone.

Our search led to developing the 109 series Dual-Composite Diaphragm – a combination of Beryllium-coated polymer, cellulose - carbon fiber composite and copper-zinc alloy.

In a world of fast-paced technology, we bet on proven fundamentals. Our new 50mm dynamic driver, assembled and tuned with ultimate precision, allowed us to push the boundaries of speed, accuracy, and dynamic range.

Made of cellulose composite enforced with carbon fiber, the W-shaped dome is able to reproduce high-frequencies with incredible detail, clarity and definition. More durable than conventional alternatives used in dynamic drivers, yet lightweight, this composite helps us avoid resonances that may lead to harmonic distortion.

The ultra-thin torus surrounding the dome is composed of Beryllium-coated semicrystalline polymer, measuring 22 microns in thickness. With the Beryllium coating applied through Physical Vapor Deposition (PVD), we aimed to increase the stiffness and durability of the driver, while still keeping it light enough to achieve a fast transient response.

Beryllium's high damping qualities also help suppress unwanted resonances, giving the 109 PRO its neutral, vivid and transparent character. Around the membrane, the ring-shaped stabilizer made of copper-zinc alloy improves the absorption of vibrations to further reduce distortion.

The diaphragm is encased in a high-precision machined aluminum frame that has superior rigidity to typical plastics frames and retains perfect surface flatness, which is essential for the precision assembly with the diaphragm.

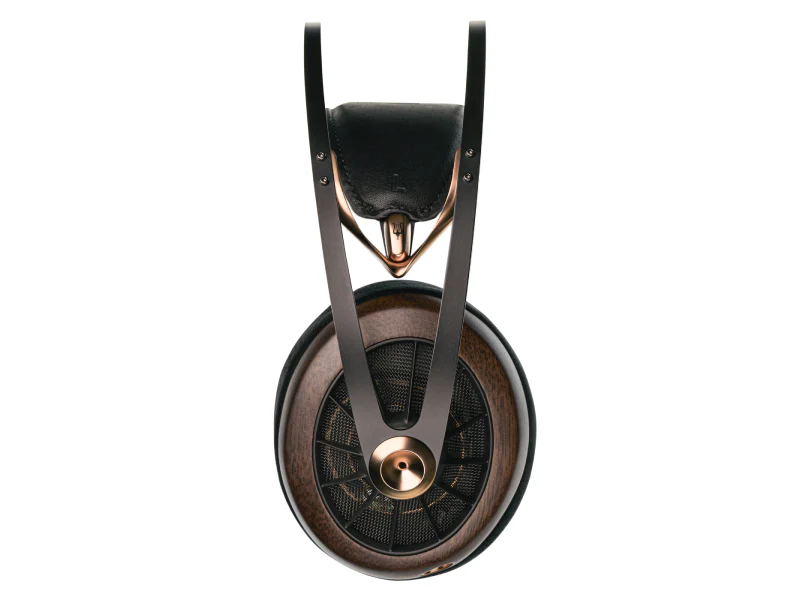

The spider-shaped structure and the acoustically transparent grill inside the earcup expose the driver from both sides, creating our most open pattern to date. Following the principles of anthropometrics, we positioned the driver at a precise angle and distance from the ear, to achieve an ideal anatomical fit.

Velour cushions comfortably surround the ears, providing the optimal seal to create natural sound. As velour is far softer and more breathable than leather, it also prevents sweat and overheating during lengthy listening sessions.

The self-adjusting headband spreads the weight out to deliver even pressure for any head shape and size.

Superior Build

The 109 PRO is all about comfort – from the structural design of the headphone to the choice of materials, all decisions were carefully made to ensure the final product rises to our highest standard, in terms of ergonomics. Once placed on your head, the headphones have to become unnoticeable, leaving you with nothing but the music.

With this perspective in mind, we combined walnut wood, zinc, manganese steel and vegan leather in a comfortable, lightweight, yet highly durable structure.

Sustainability

The black walnut wood we use for our headphones comes strictly from sources with a certificate of origin, harvested from mature trees that have reached the end of their life cycle. This way, the environment is being protected, leaving room for new life, while the old trees are shining once again, in the shape of a Meze headphone.

Longevity in Mind

The 109 PRO is crafted with utmost care for sustainability. As our choices of today can have a great impact in the world of tomorrow, we design products that last. We believe that a longer product lifespan means a smaller footprint Following this philosophy, the 109 PRO can be taken apart and serviced endlessly if ever needed, which can extend the life of the product beyond limit.

Specifications

Transducer Size:	50mm
Frequency Response:	5Hz – 30kHz
Sensitivity:	112dB SPL at 1kHz, 1mW
Impedance:	40 Ω
Weight:	375g (13 oz) without cables
Ear-Cups:	Black walnut wood
Case:	Hard EVA pouch
Two Cables Included:	- 1.5m soft TPE cable with 3.5mm jack- 3m soft TPE cable with 3.5mm jack
Adapters:	- 6.3mm jack adapter

Head-Fi

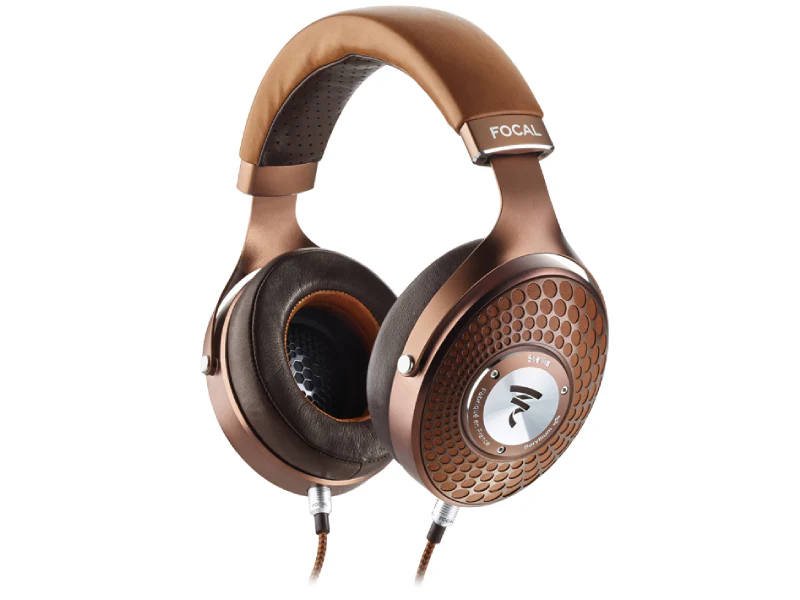

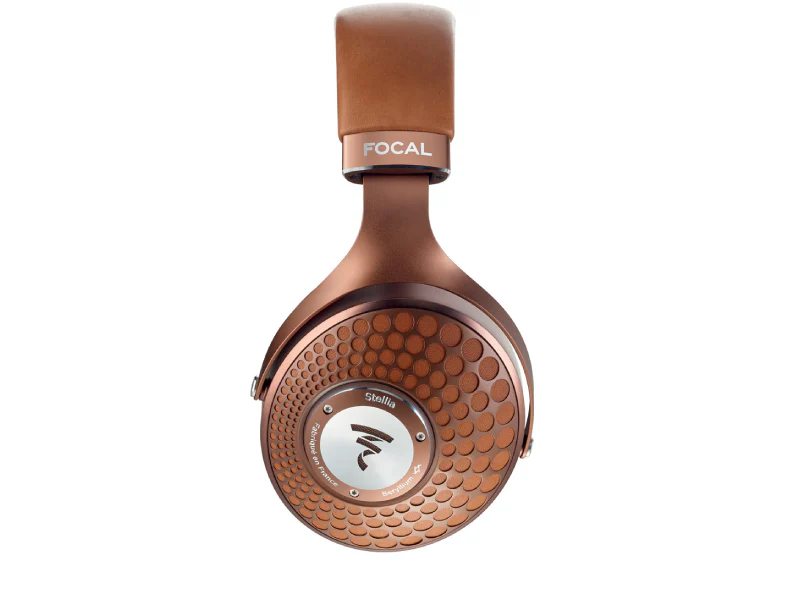

Focal Stellia Closed-Back Circum-Aural Headphones

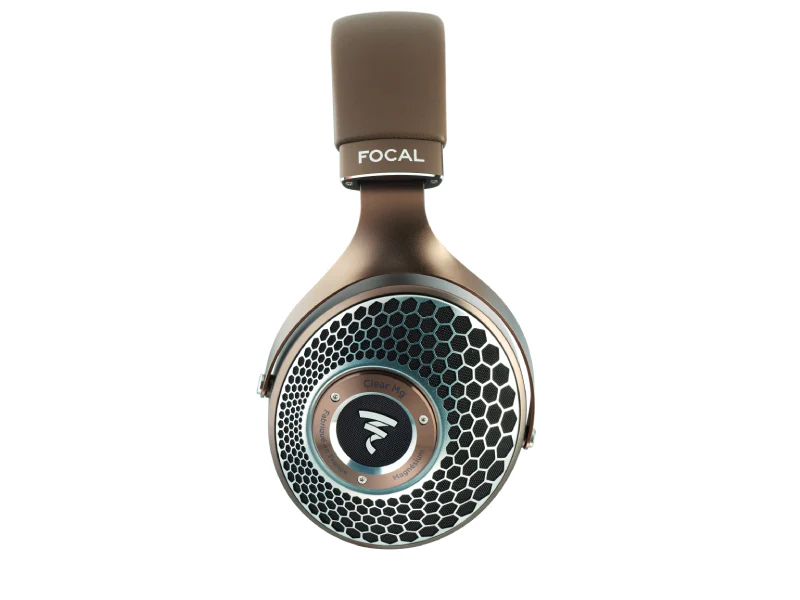

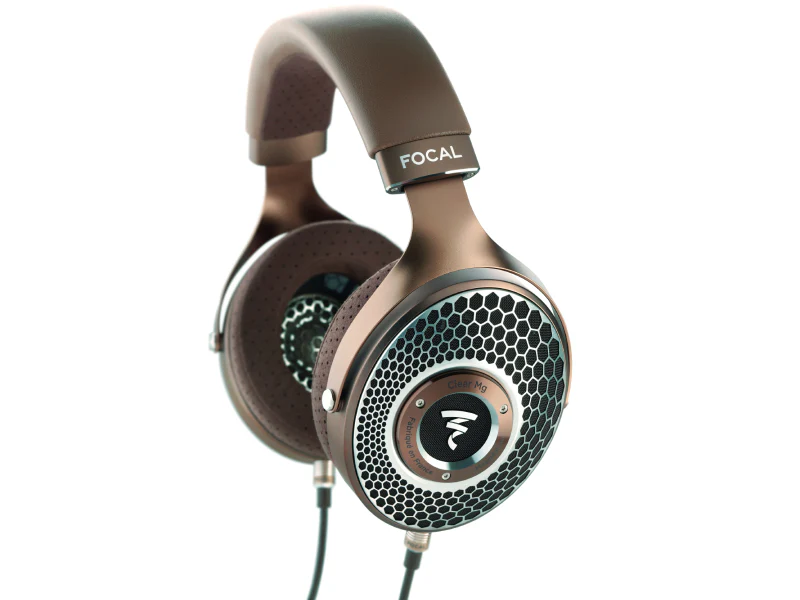

Focal Clear MG Headphones

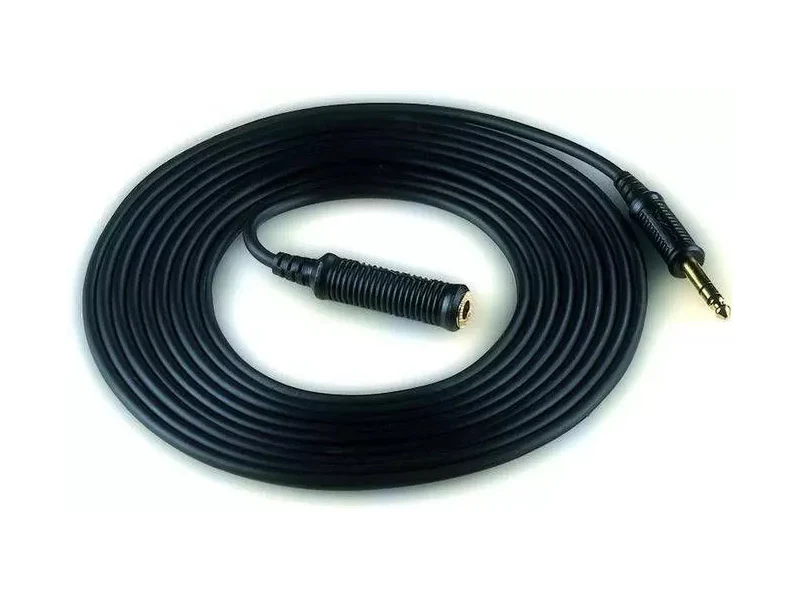

Grado 450cm Headphone Extension Cable

Naim Uniti Atom Headphone Edition

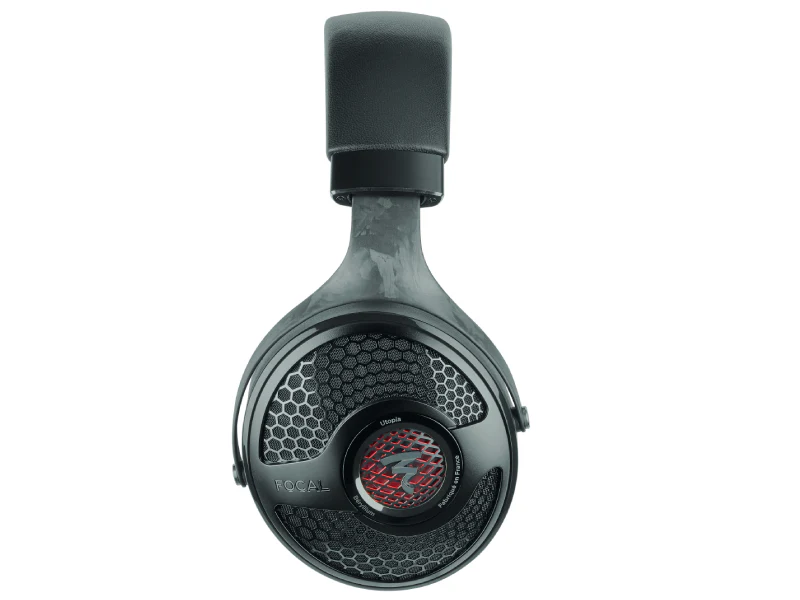

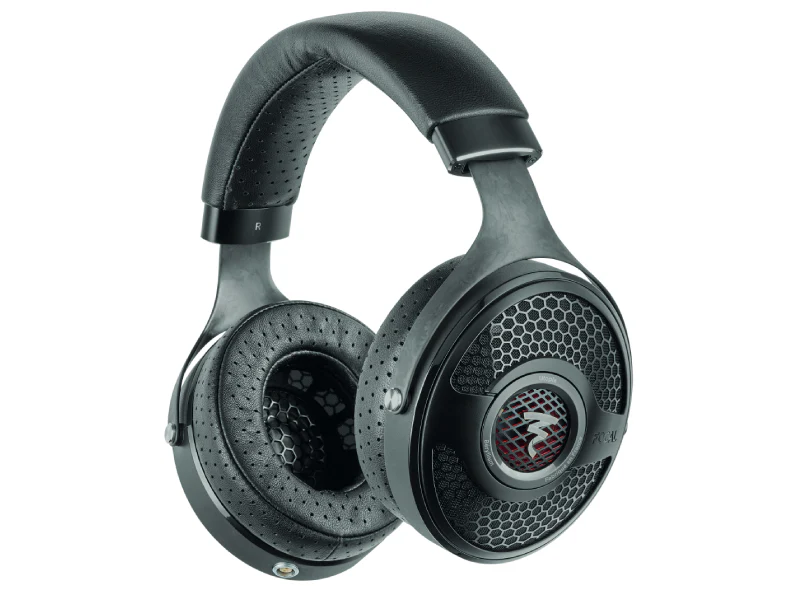

Focal Utopia Headphones (2022 Edition)

Meze 109 Pro Headphones

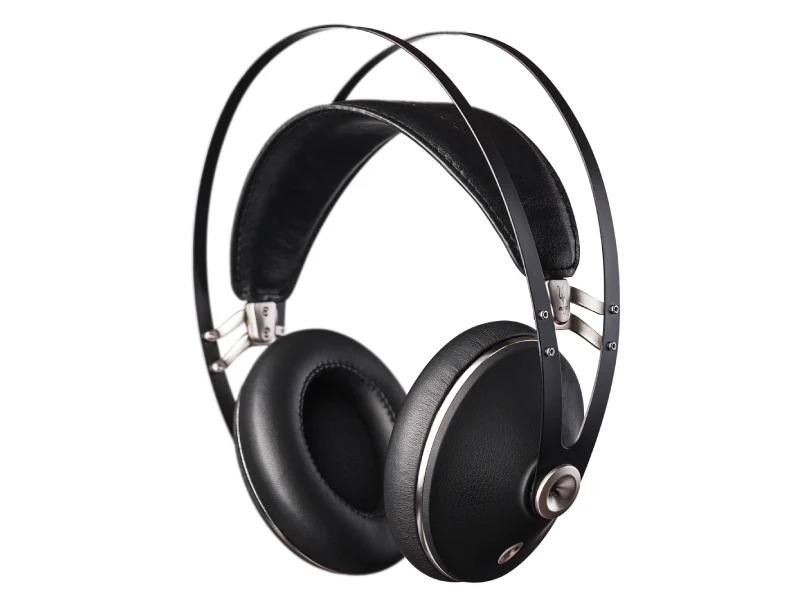

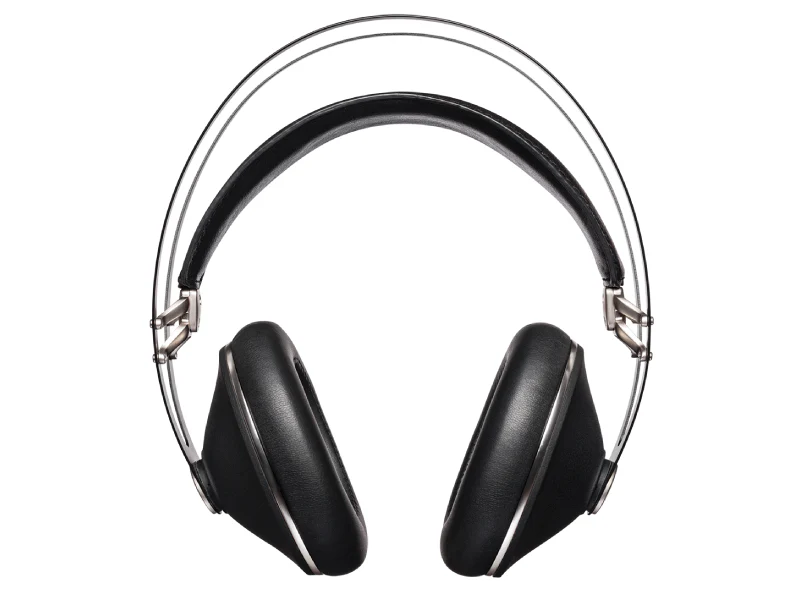

Meze 99 Neo Headphones

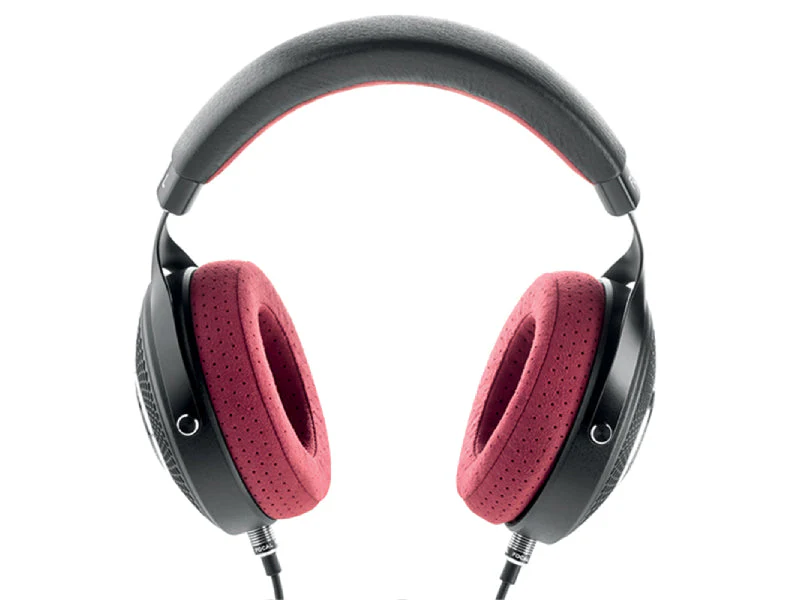

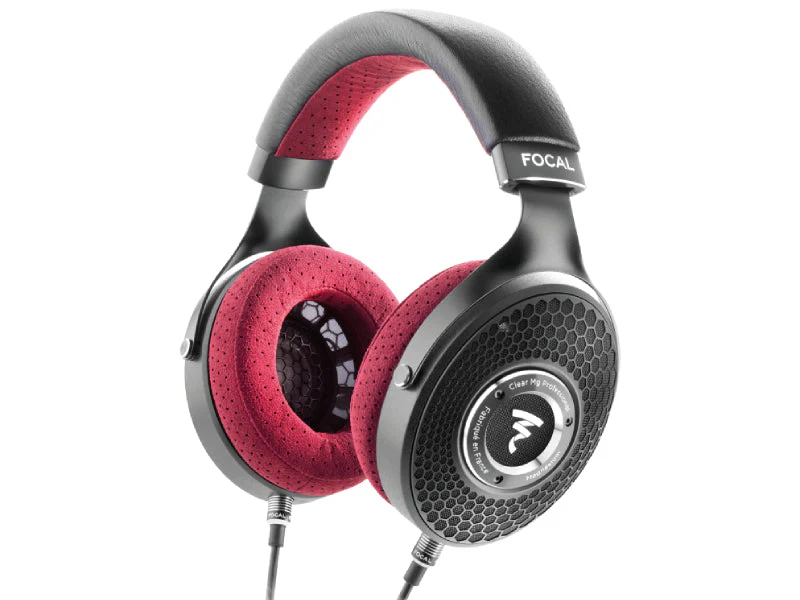

Focal Clear MG Professional Headphones

Naim Uniti Atom Headphone Edition with Focal Clear MG Headphone System

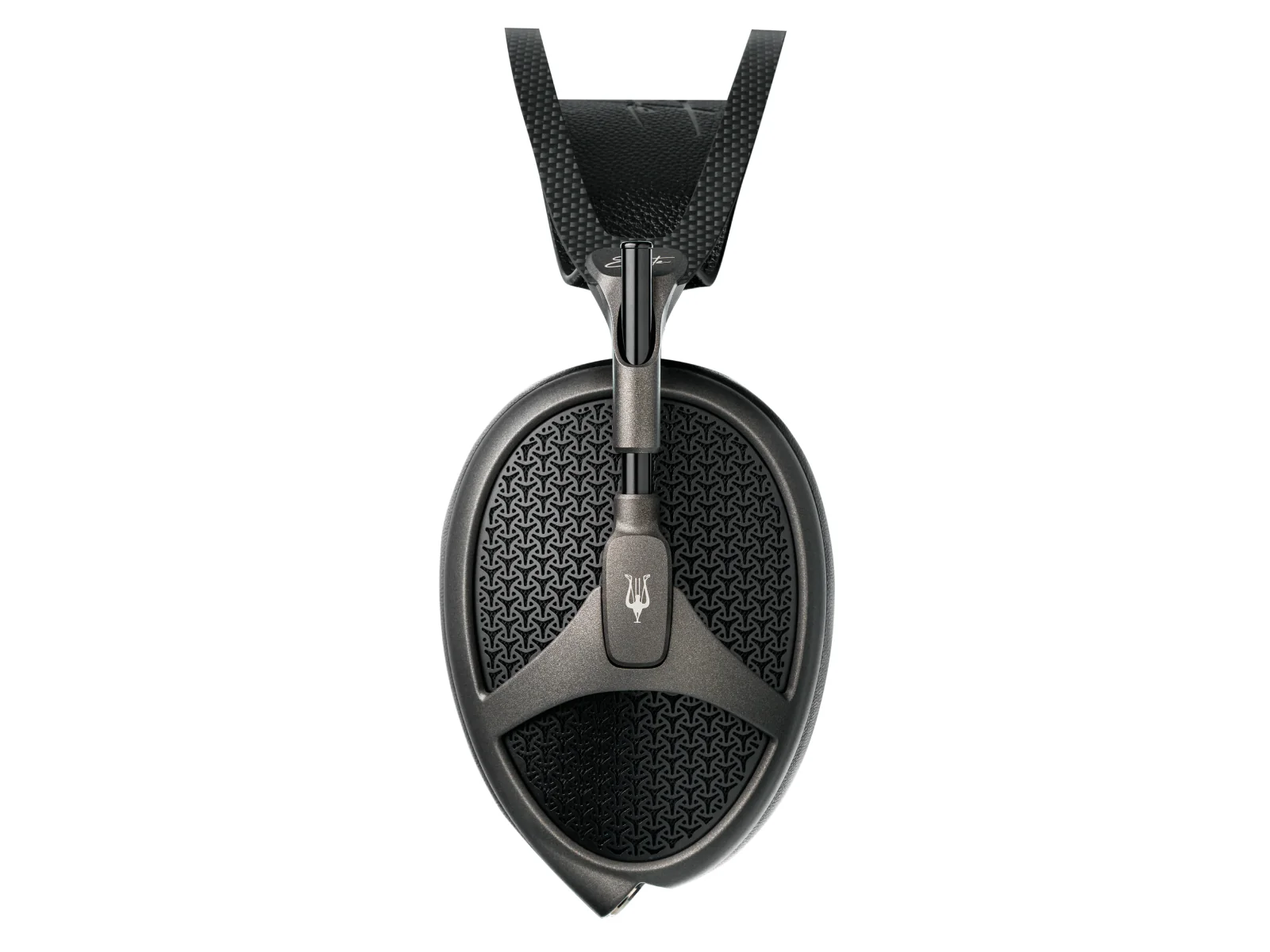

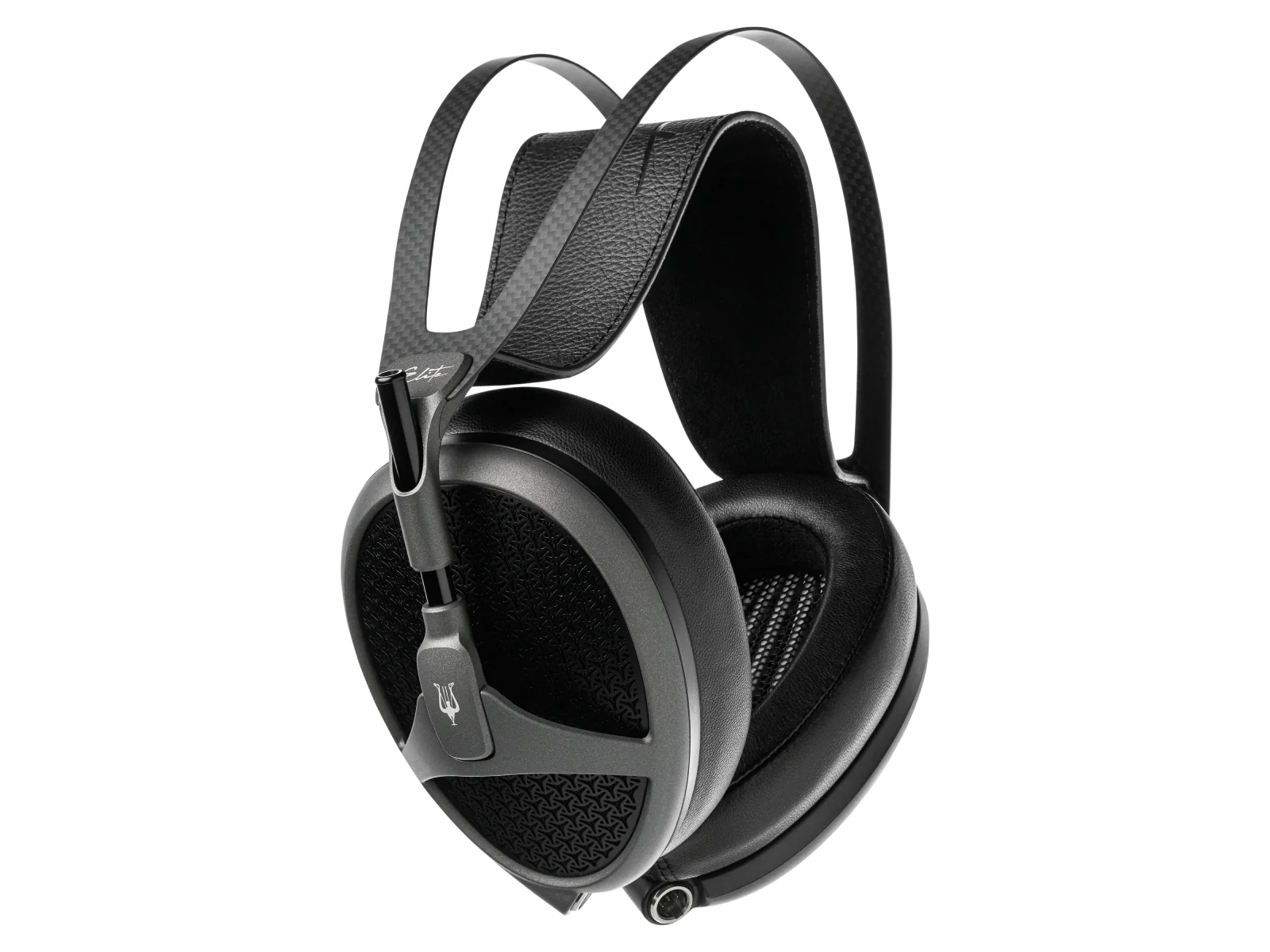

Meze Elite Headphones

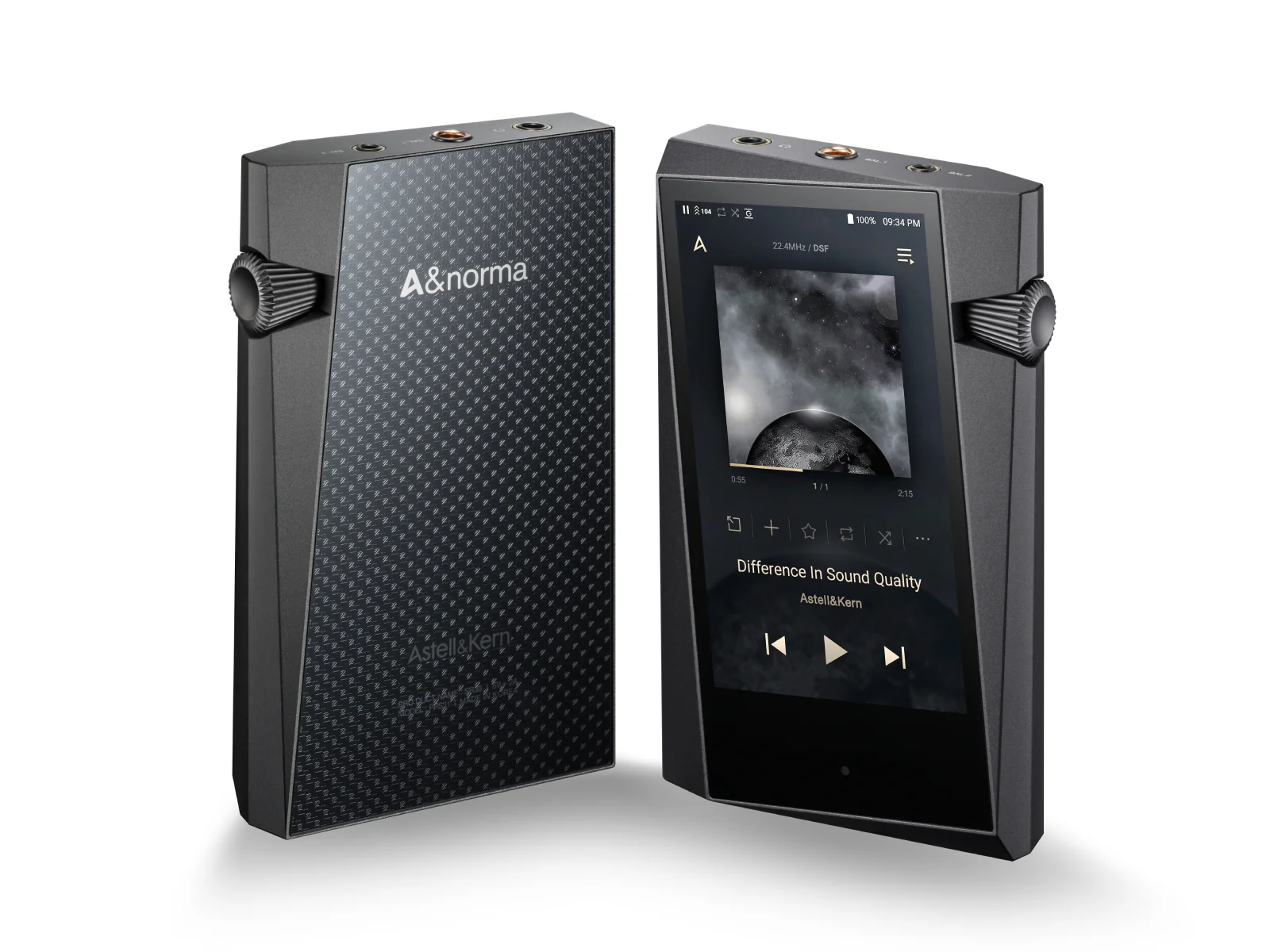

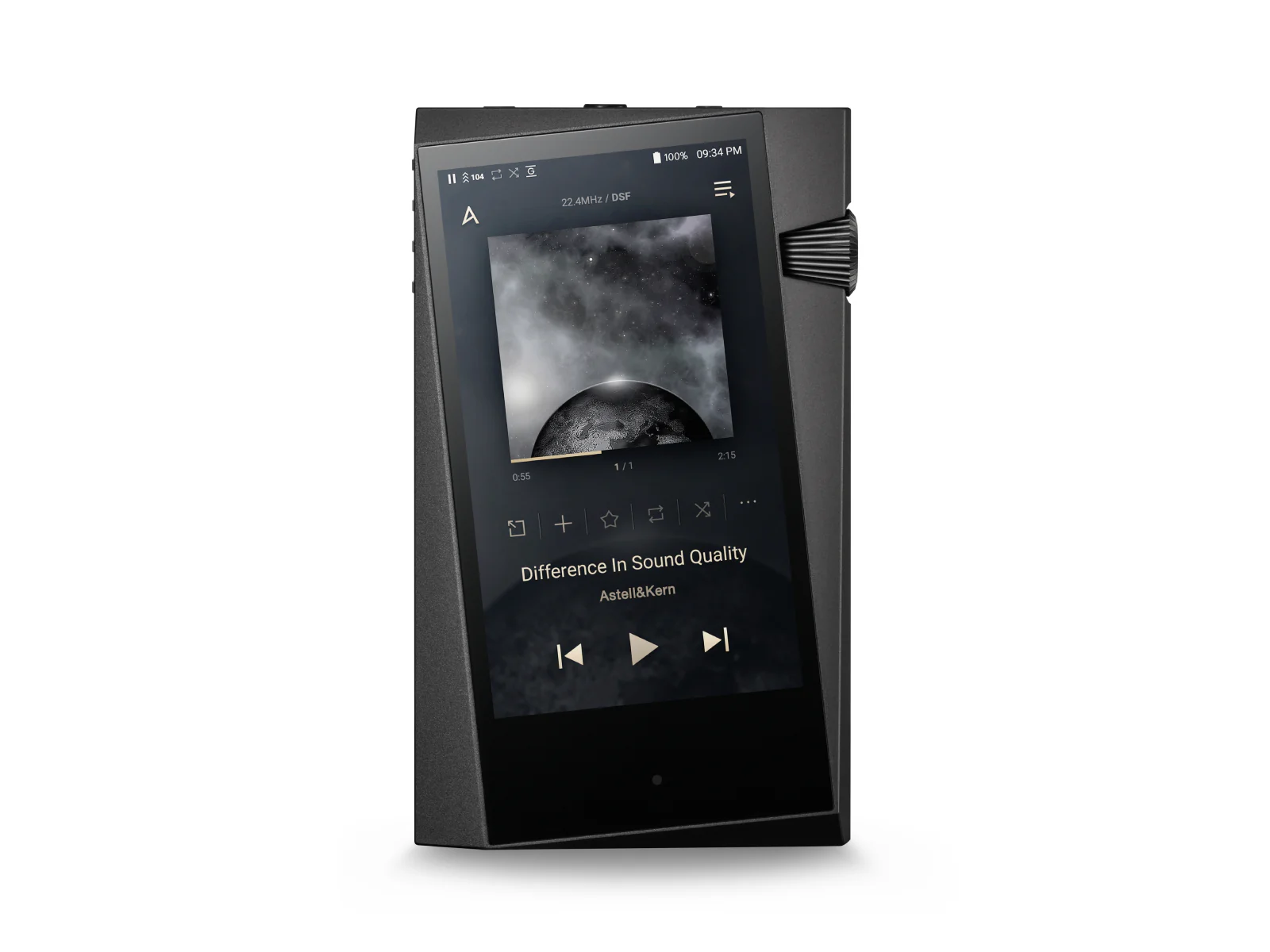

Astell&Kern A&norma SR35 High Res Audio Player + FREE Case

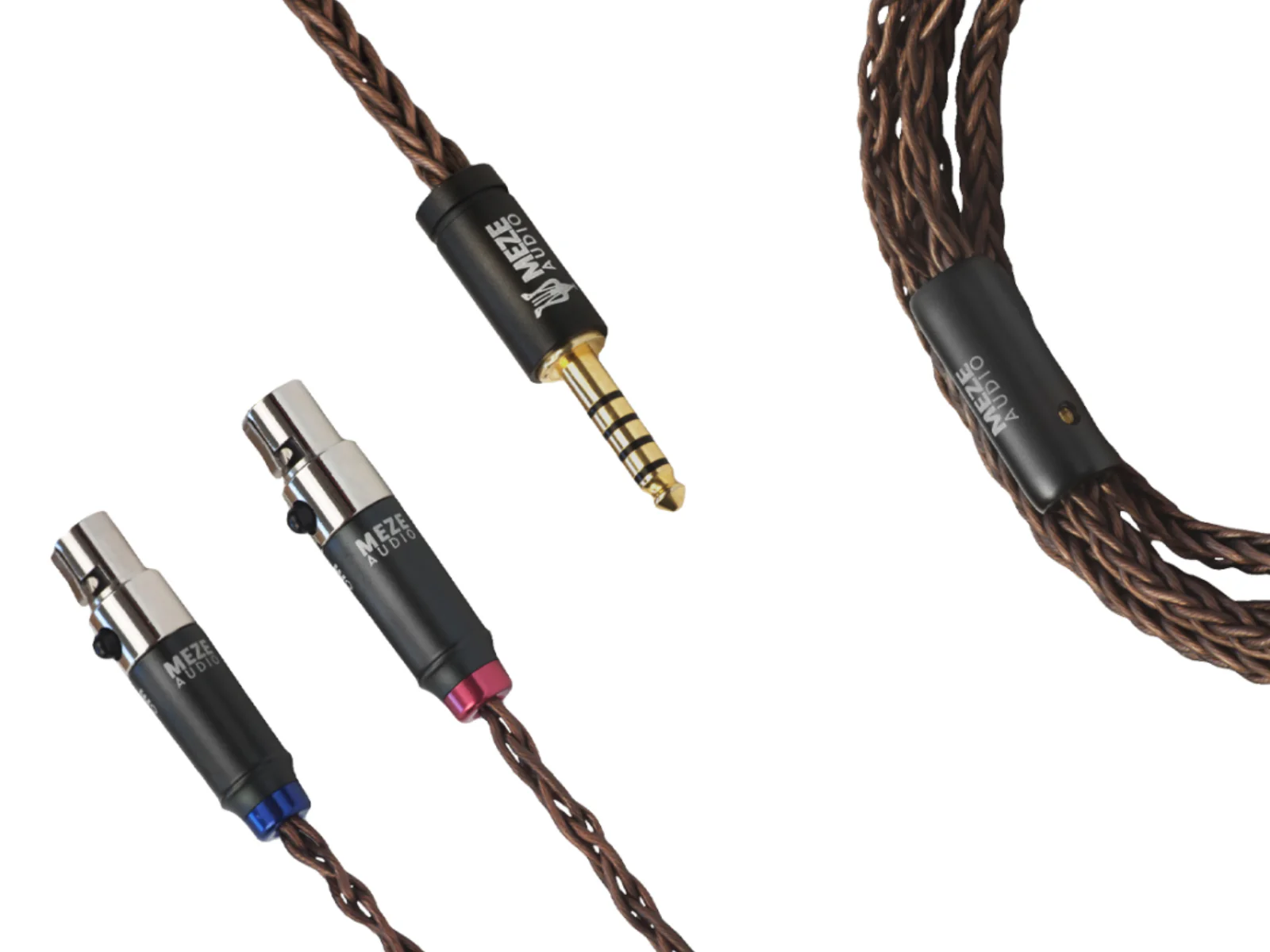

Meze Empyrean Furukawa PCUHD Copper Cable
